2 Hole Splice Plate

2 Hole Splice Plate
Product name : 2 Hole Splice Plate Item : SF-1010-12
2 Hole Splice Plate
Fig. B C Wt.In Lbs Wt.g Finish Materrial

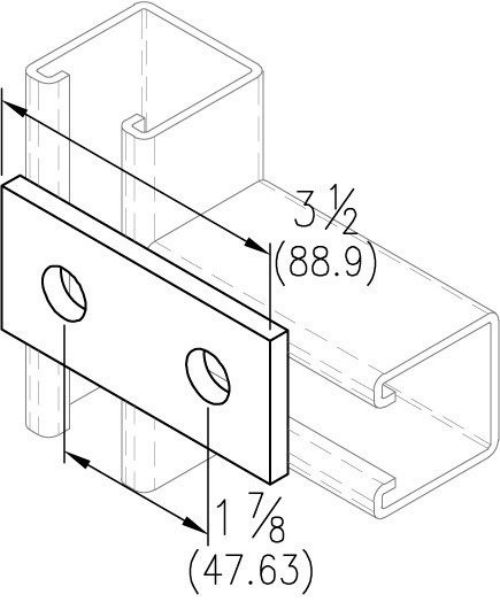

SF-1010 3-1/2" 1-7/8" 0.37 167.8283 EG 1/4"

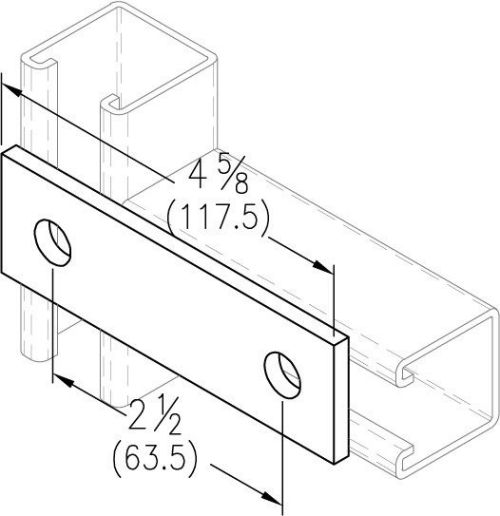

SF-1011 4-5/8" 2-1/2" 0.50 226.795 EG 1/4"

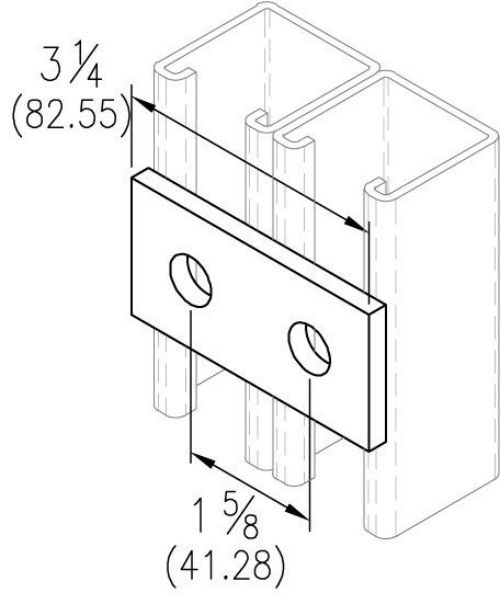

SF-1012 3-1/4" 1-5/8" 0.34 154.2206 EG 1/4"
